Welkom to the FDU Nixie clock V1 page
You can find a lot about nixie’s and clocks around the net (use google)
this page is about the clock I created.
I wanted to build a clock for my own, but why only for me ?
so I decided to give you the same fun as me and created a kit for building your own nixie clock.
The nixie V1 version is no longer available.
Will be working on new V3 version

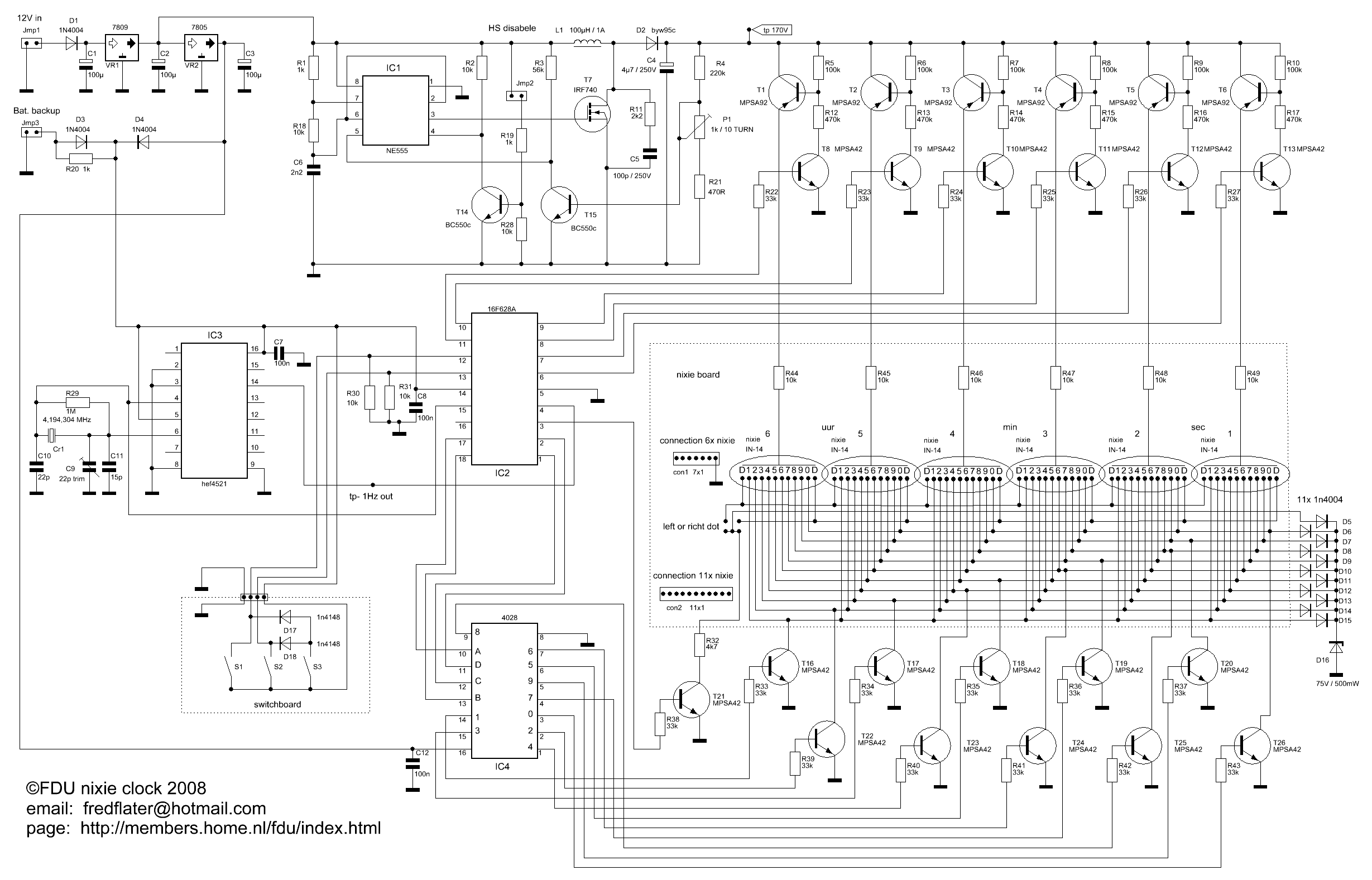

Schematic fdu nixie-klok
~117kb big

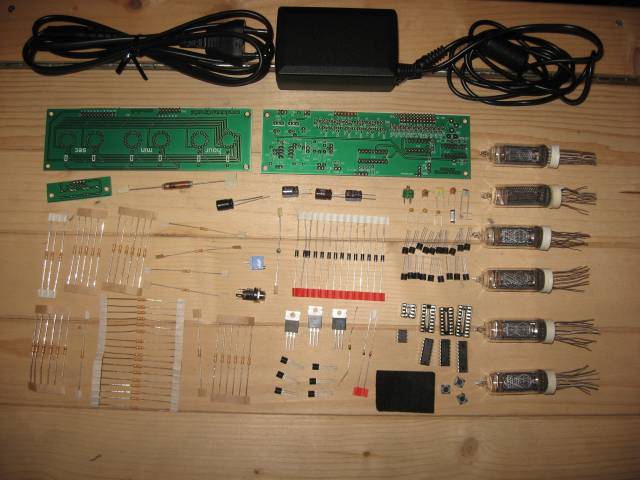

the parts

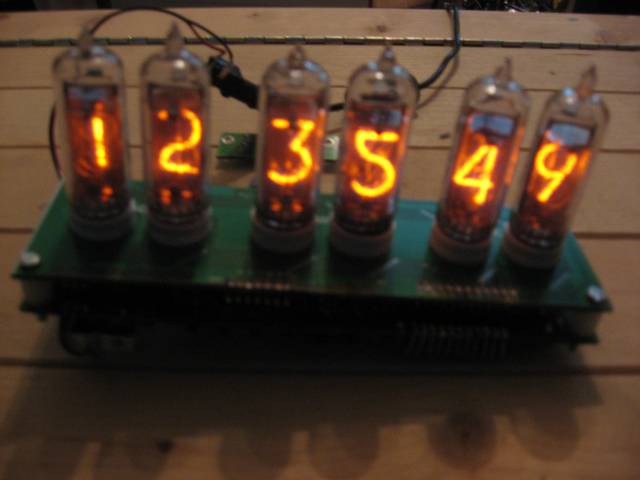

finished and working nixie-klock kit

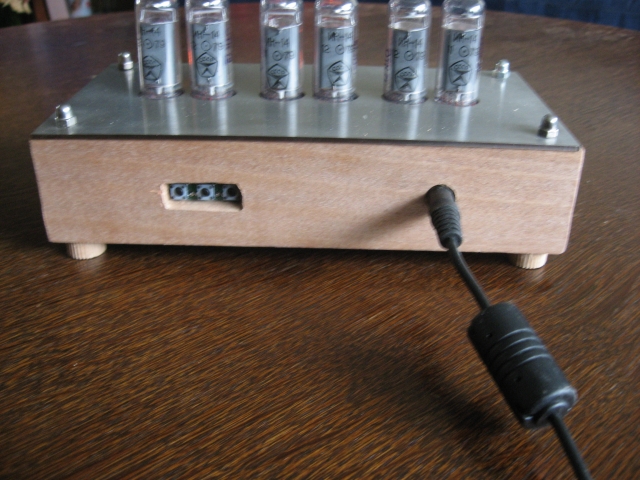

the back of nixie clock with the buttons and power connection

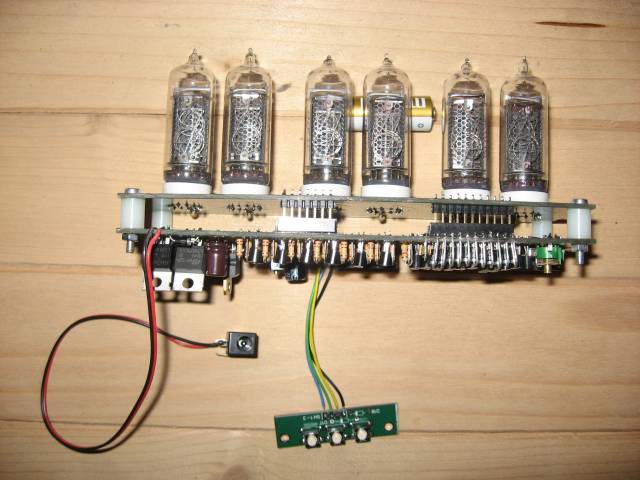

finished nixie clock kit, headers (connection between pcb’s) is by this one prototype.

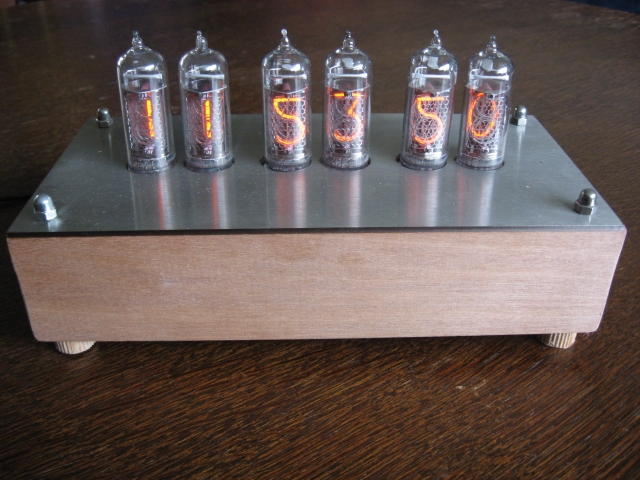

nixie clock in a hard wooden case with a 2mm thick stainless top
